Interconnection of 380/132 Kv Ashbailyah Substation with 132 Kv Network in Riyadh

Home / Projects / Interconnection of 380/132 Kv Ashbailyah Substation with 132 Kv Network in Riyadh
Project Overview

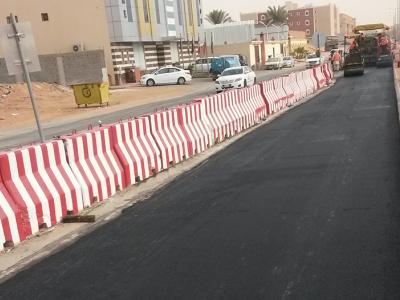

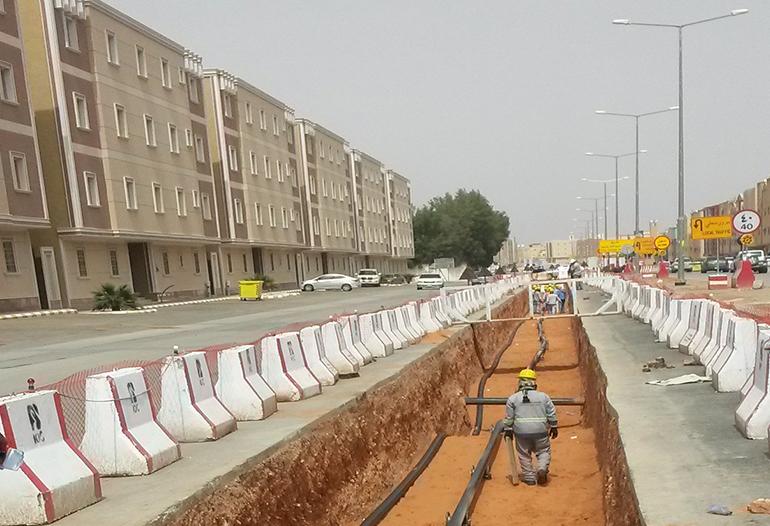

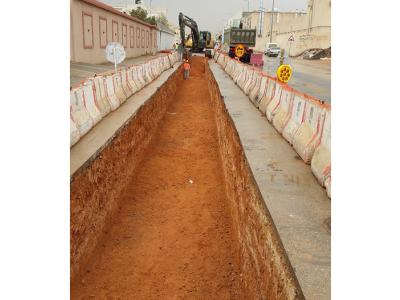

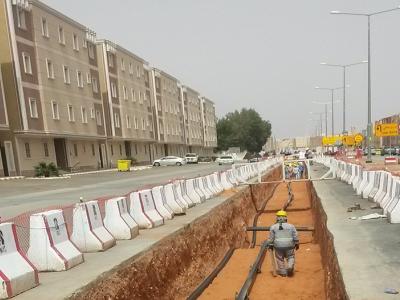

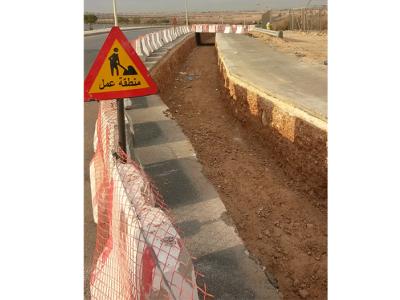

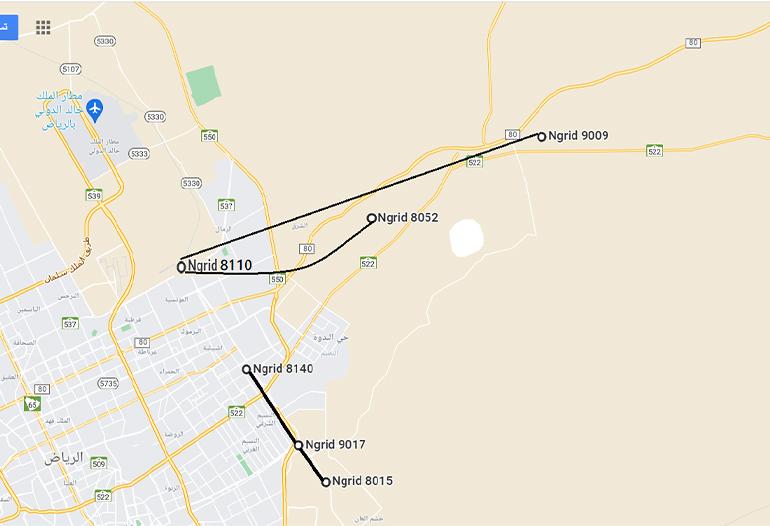

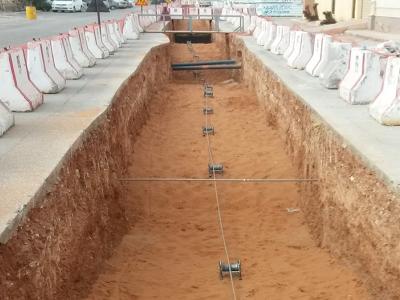

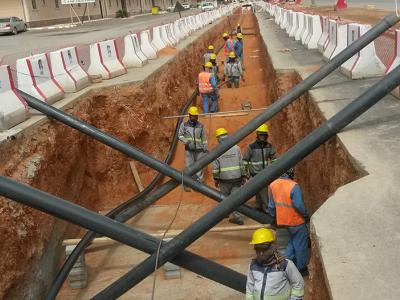

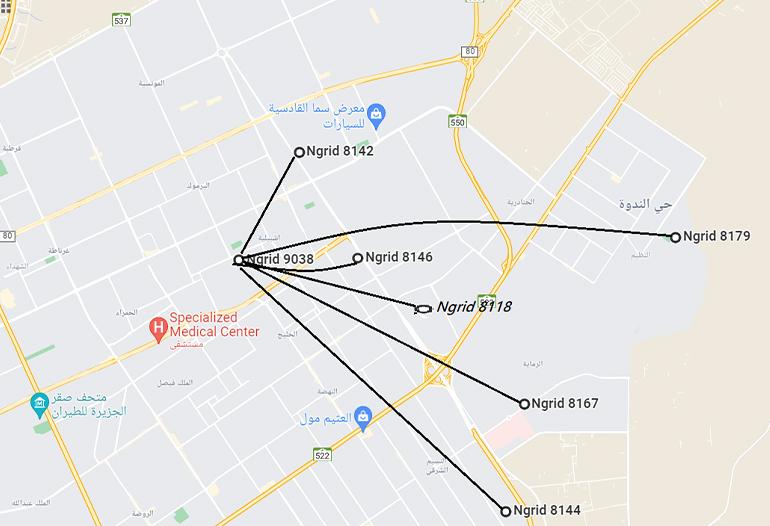

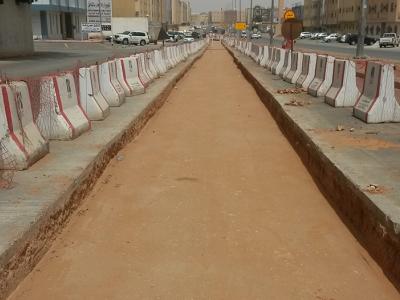

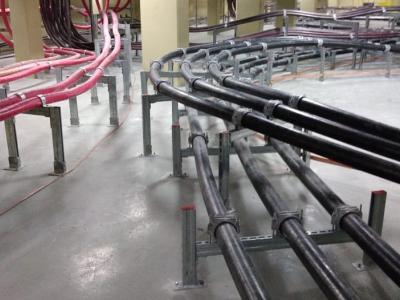

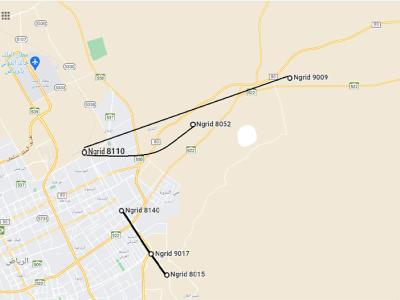

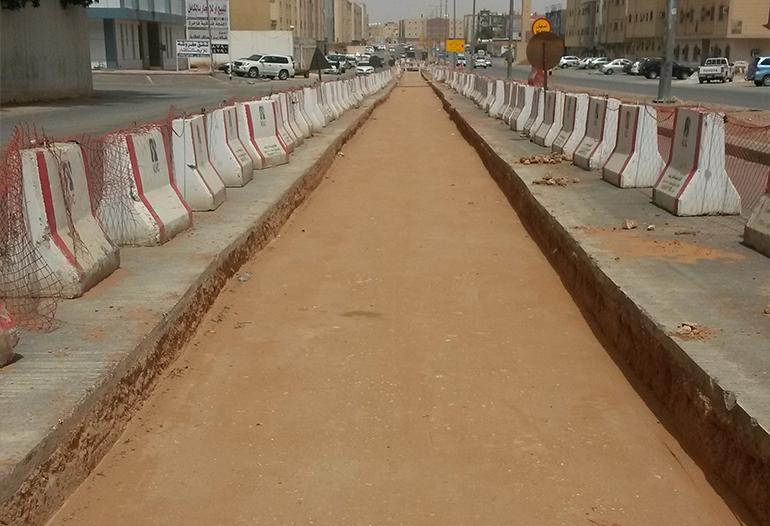

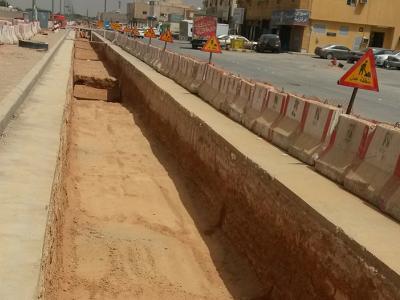

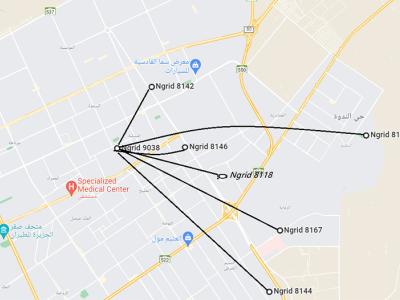

Interconnection of the 380/132 kV Ashbailyah substation with the Riyadh network in two portions: 14 circuits and 138 km of underground cable along a 46 km route through six districts and 13 substations, with 46 km of fibre optics, 2.3 km of horizontal directional drilling, 333 insulated joints and 138,000 m² of asphalt.

Client
Saudi Electricity Company (SEC)
Location
Riyadh
Status
Completed
Business
Energy
Project Key Figures
01/04
14 Circuits
01/04
Project Album
