Project Overview

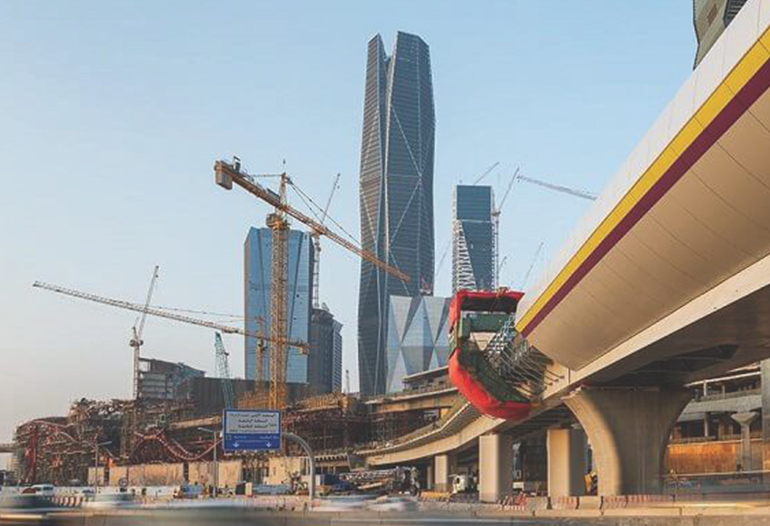

Bin Omairah is proud of its participation in Riyadh Metro Project, one of the world’s largest metro projects comprising 6 metro lines that connect 85 stations and span nearly 176 Km of track.

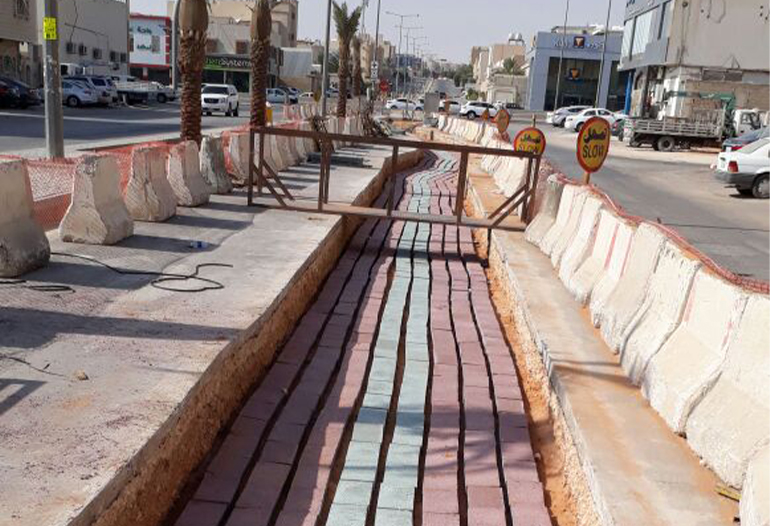

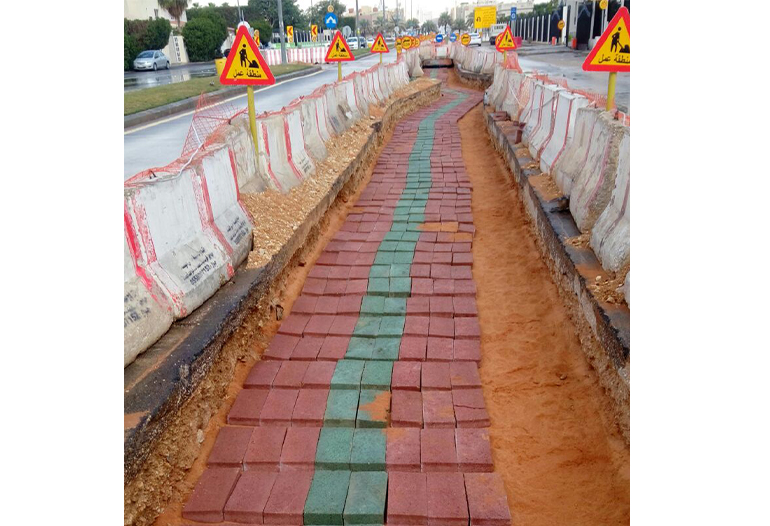

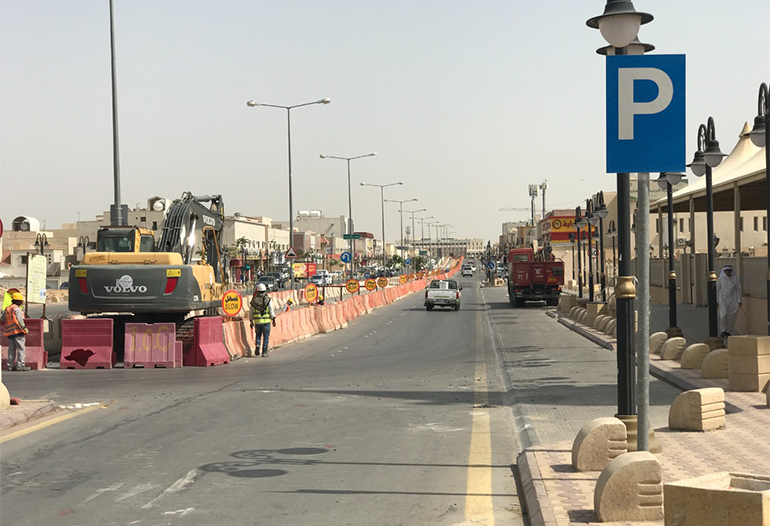

In this Project, Bin Omairah executed the turnkey contract for the design, manufacture, delivery, installation, jointing, termination, testing, commissioning and put into service of the Main and Alternative Power Supply interconnections between METRO LINE 2 PP1 Substation situated in Olaya Main/Interchange Station 2B2 and SEC Grid Substations BSP S/S # 9051 and BSP S/S # 9053. This Project comprising laying of 144 Km of 33Kv Underground Cables with total route length of 54.5 Km.

  • No. Of Circuits: 10

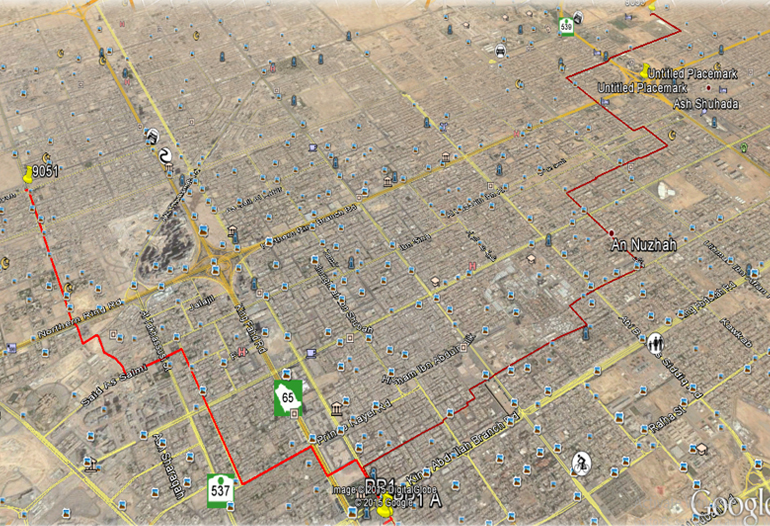

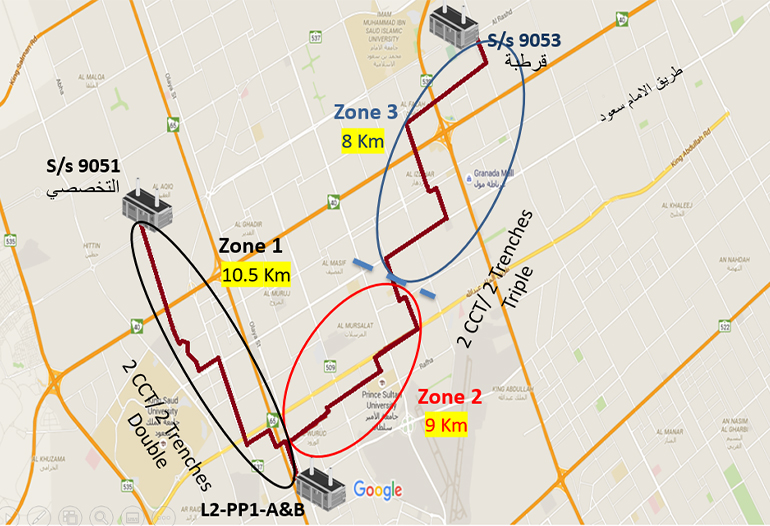

  • Route Length: 55 KM
  • U/G Cable Length: 144 KM
  • Fiber Optic Cable Length: 44.5 KM

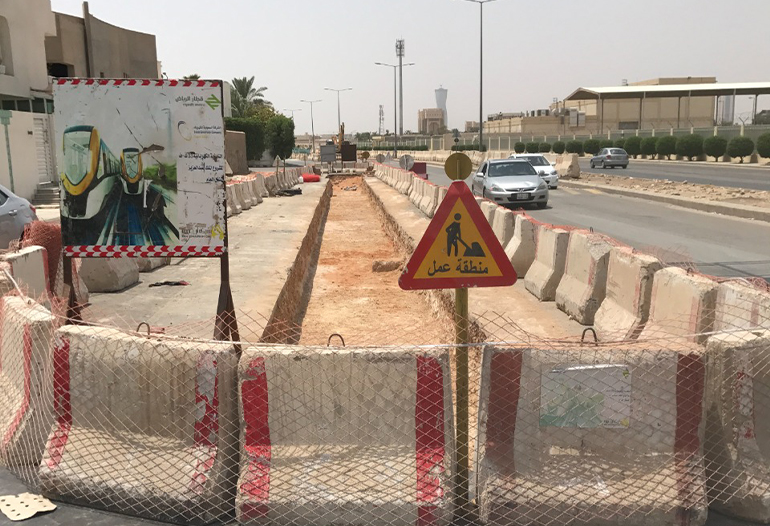

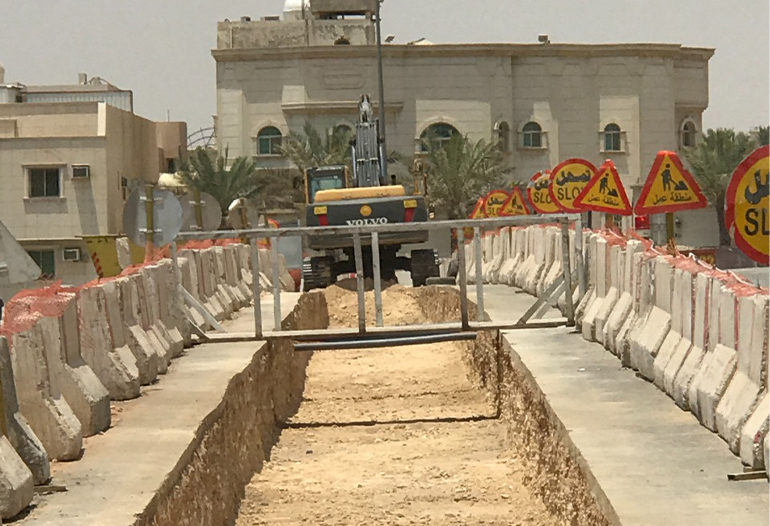

  • Excavation Work: 49,000 M3
  • Backfilling Work: 43,300 M3
  • Asphalting Work: 82,000 M2
  • HDD: 400 M

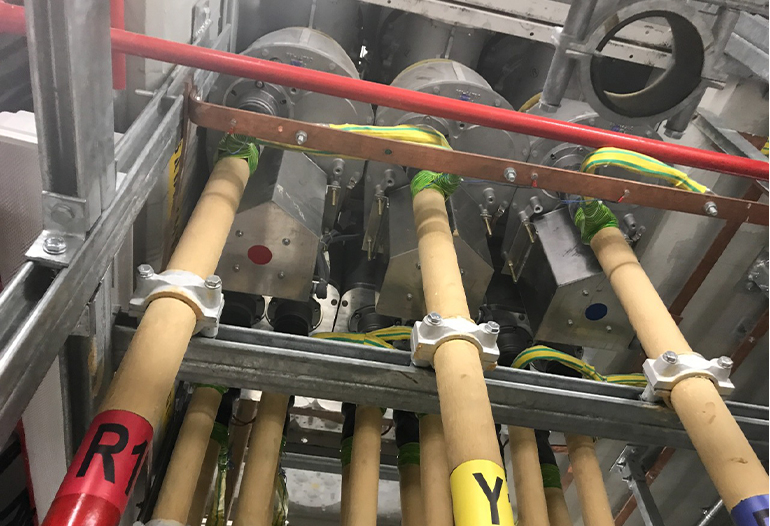

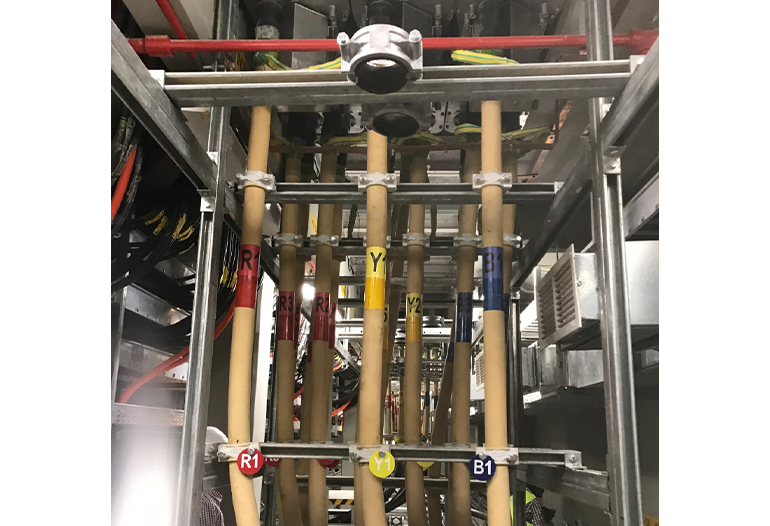

  • Insulated Joints: 300 Joint

Client

  • Saudi Electricity Company (SEC)

Main Contractor
